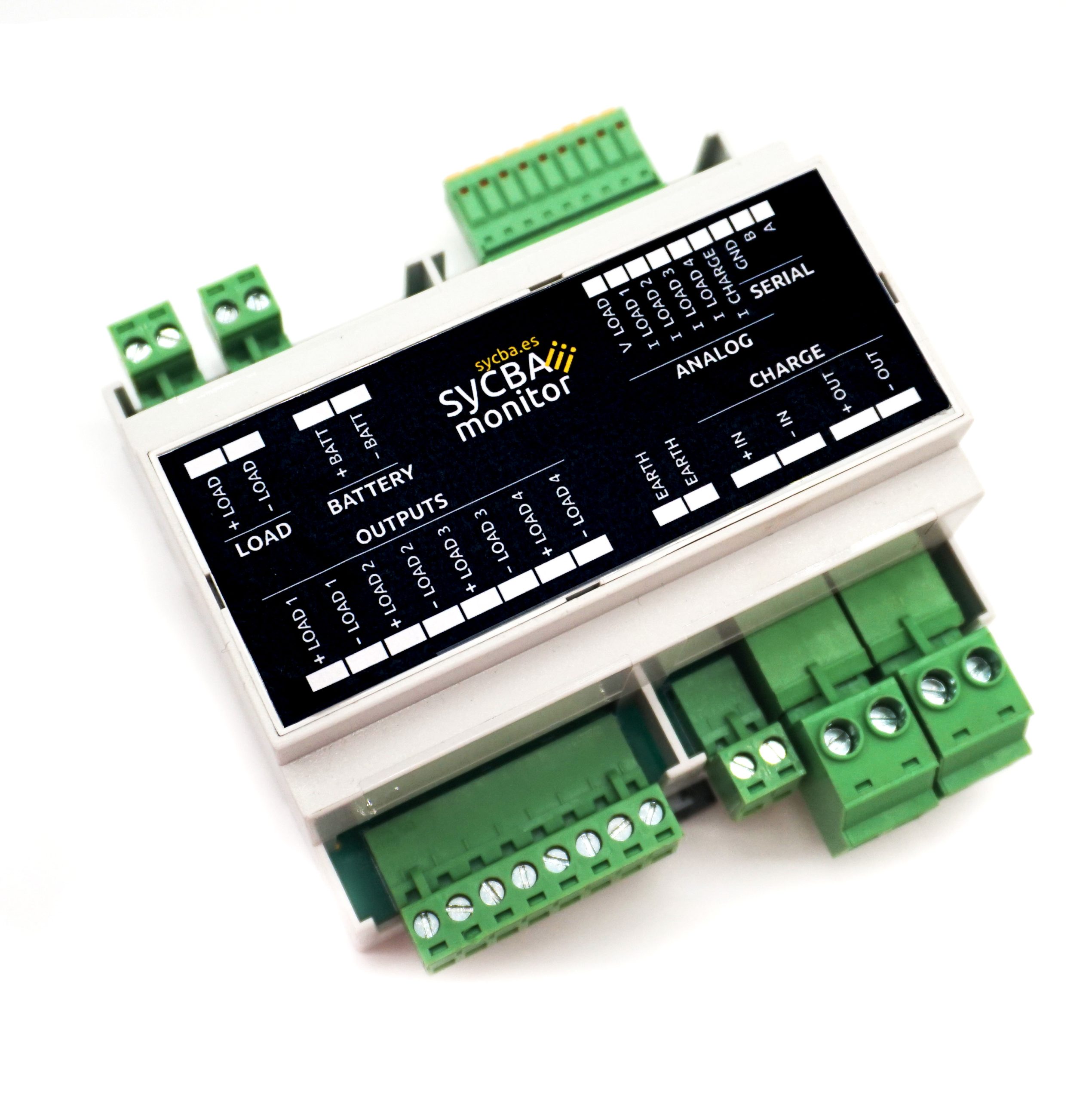

Sycba monitor 3.1
Sycba monitoring system
The SYCBA MONITOR 3.1 is designed to easily survey stand-alone power supply systems, using commercial data acquisition systems.
It is particularly suitable for monitoring equipment with a steady working behavior, such as aviation obstruction lights or systems with heated sensors.
SYCBA MONITOR 3.1 takes the power supply and distributes it through its four (4) different individual loads.
The system measures the voltage of the supply system, the current for all the connected loads and charge current for the backup battery of the stand-alone supply system.
The device then returns each of the measured values using the 6 analogue outputs or through a RS485 serial communication.
SYCBA MONITOR 3.1 is a device specifically developed to monitor the consumption and power system of equipment powered by direct current through autonomous power systems.
The typical application is to monitor the load and consumption operation of systems with photovoltaic (or mini- wind) power and with batteries to 12/24 VDC power devices.
SYCBA MONITOR 3.1 is a measurement module designed to transmit data via cable. It lacks a telemetry system for data transmission and does not include internal data storage. However, it has been engineered to send signals to compatible devices equipped with data storage and transmission capabilities.
SYCBA MONITOR 3.1 is prepared to internally distribute the power supply of the devices to be monitored (maximum 4 devices), without the need for bridges or external connections.
The measurement system, by means of transducers, is galvanically isolated so that the measurement part can never interfere with the measured equipment.

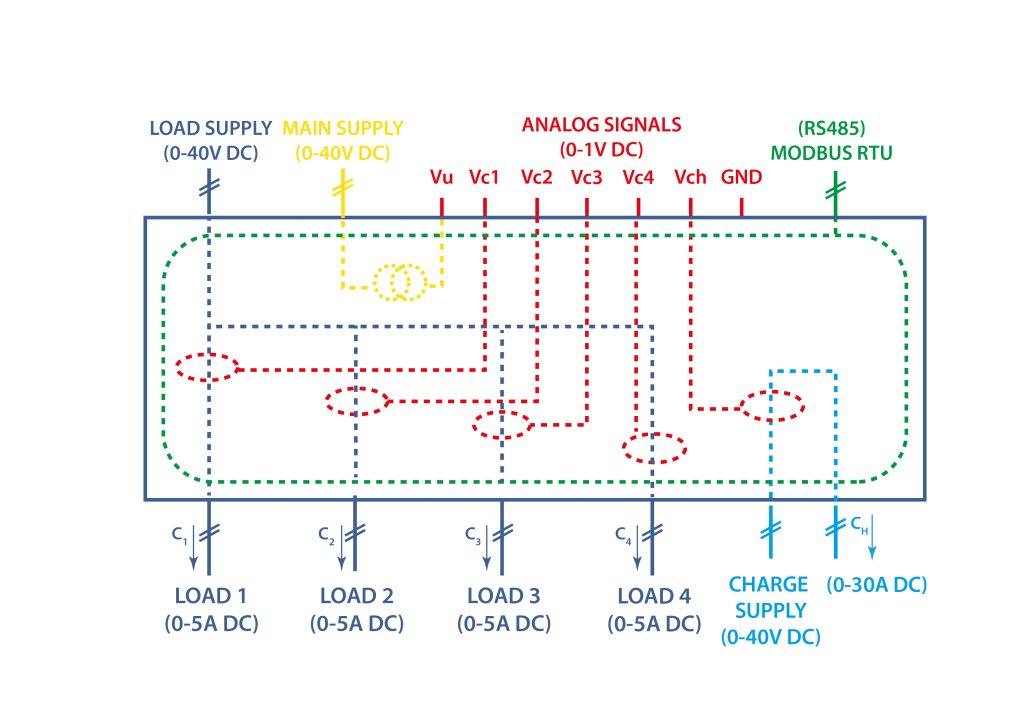

Operation
SYCBA MONITOR 3.1 measures up to 6 different parameters: the consumption current of up to 4 devices, the supply voltage and the charging current of the system.
Specifications
Model | SYCBA Monitor | Code
| SYC-MON |
|---|---|
DC Power | 0 VDC – 40 VDC |
System Supply | 9 VDC – 32 VDC |
Parameter monitored 1 | System voltage (0VDC – 40VDC) |
Parameter monitored 2 | Current for load 1 (0ADC – 5ADC) |
Parameter monitored 3 | Current for load 2 (0ADC – 5ADC) |
Parameter monitored 4 | Current for load 3 (0ADC – 5ADC) |
Parameter monitored 5 | Current for load 4 (0ADC – 5ADC) |
Parameter monitored 6 | Current for charge (0ADC – 50ADC) |
Analogue output signals | 6 signals of 0 – 1 VDC |
Serial RS485 output signal | ModBus RTU protocol |
Ambient Temperature | -10 ºC to 60 ºC |
Overall Size(mm) | (H L W) 55mm x 105mm x 90mm |
Installation | DIN rail |
Weight | 0.220 Kg |
Usage Notice
Connect only to a power supply system within the rated parameters, otherwise the equipment could be damaged.
After its installation and adjustment, the device must be verified. To avoid any leaks, the O-ring must be correctly tighten using the shell screws.
To prevent any major complication and/or injuries, only trained personal should carry out the maintenance.
Please follow all the country-specific regulations while working with the device, also, be advised of the next safety guidelines:
1. Disconnect all power supplies
2. Reconnection
3. Ascertain the voltage-free operation
4. Carry out earthing and short-circuiting
5. Isolate all adjacent live parts
