SYCBA model SYC-32-LE is a medium intensity type E obstruction light (32 cd flashing red light) used for marking tall structures, such as wind turbines, towers, met masts, chimneys, broadcast masts, bridges, buildings, etc.
Light source is achieved with high-efficiency LEDs, along with optical lenses, to offer a high-intensity light with low consumption and a long-lasting service life.
The body is manufactured with anodized aluminium alloy, painted with powder coating for outstanding corrosion resistant properties.
The shell is made with Polycarbonate that is a tough, transparent UV protected plastic material with exceptional strength, stiffness, and that is impact resistant even at low temperatures.
The assembly is fully sealed and IP65 rated. The lamp is supplied with bracket.
The product has an incorporated switch to customize the flash-rate between 20, 40 and 60 fpm.
Optionally the lights can be supplied with a twilight sensor and/or GPS synchronization.
For monitoring and control the consumption, SYCBA MONITOR can be used, for further information contact SYCBA.
| Model | SYCBA Light |
| Code | SYC-2000-MA |
| FAA compliance | Type L-865 |
| ICAO compliance | MIOL type A |
| DC Power supply option | 24VDC / 48VDC |
| AC Power supply options | 230 VAC 115 VAC |
| Working mode |
Flashing 20, 40, 60 fpm
|
| Light Intensity |
20.000 Cd ±25% (day); 2.000 Cd ±25% (night)
|
| Vertical beam | ≥3° |
| Horizontal beam | 360° |
| Light Color | White |
| Power consumption at 20 fpm | ≤ 1,2 W |
| Operating Temperature | -50 ºC to 70 ºC |
| IP Protection | IP66 |
| Weight | 800gr (mounting bracket included) |
Model | SYCBA Light | Code
| SYC-32-LE |
|---|---|
Type L-810 | FAA compliance |
ICAO compliance | LIOL type E |
DC Power supply option | 12VDC – 30VDC |
AC Power supply options | AC Power supply options 220 VAC 50Hz – 120 VAC 60Hz |
Working mode | Flashing 20, fpm |
Light Intensity | ≥32.5 Cd |
Vertical beam | 10° |
Horizontal beam | 360° |
Light Color | Red |
Power consumption at 20 fpm | ≤ 1,2 W |
Peak power | 4 W |
Twilight control | 50/100 Lux |
Ambient Temperature | |
IP Protection | IP65 |

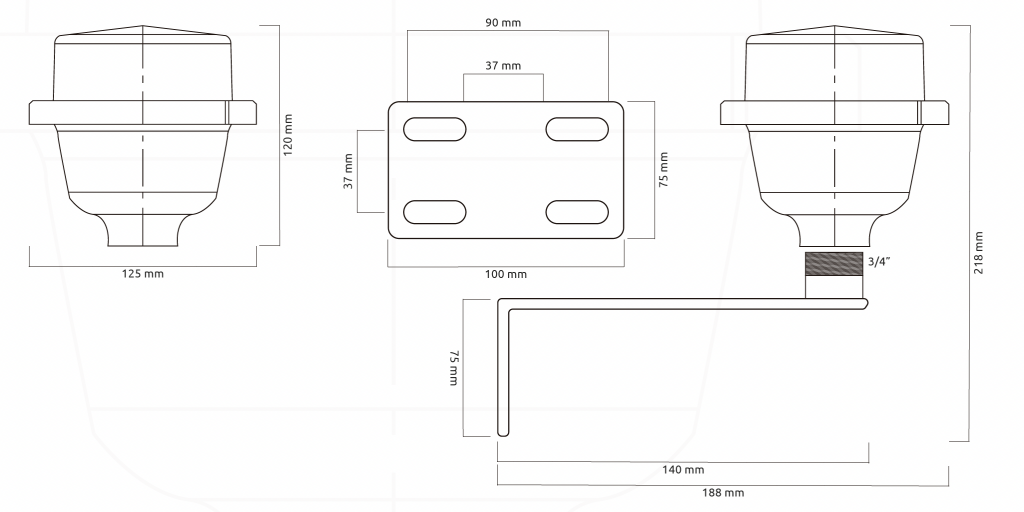

Overall Size(mm) | (h.l.w) 218mm × 188mm × 125mm |
Weight | 0,8 Kg |
Maximum wind speed survival | 120 m/s |
Connect only to a power supply system within the rated parameters, otherwise the equipment could be damaged.
After its installation and adjustment, the device must be verified. To avoid any leaks, the O-ring must be correctly tighten using the shell screws.
To prevent any major complication and/or injuries, only trained personal should carry out the maintenance.
Please follow all the country-specific regulations while working with the device, also, be advised of the next safety guidelines:
1. Disconnect all power supplies
2. Secure against re-connection
3. Ascertain the voltage-free operation
4. Carry out earthing and short-circuiting
5. Isolate all adjacent live parts
